Haroldo Gamal's High-Octane

Born in the sunny Brazilian's beaches, this small beast was built following schematics from AX84 High Octane. Delivering near 6 watts RMS, it performs one of the best tones I've hear. The schematics can be found here.

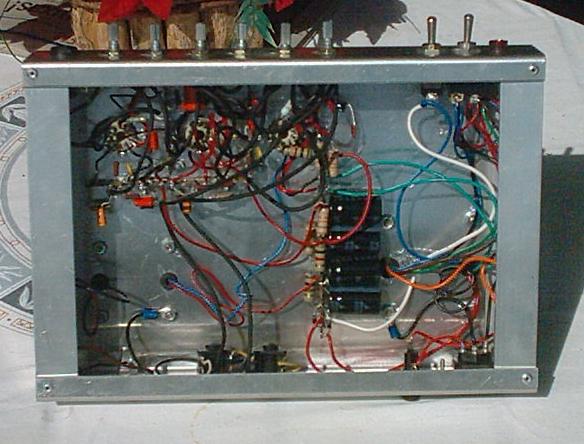

Below an inside view.

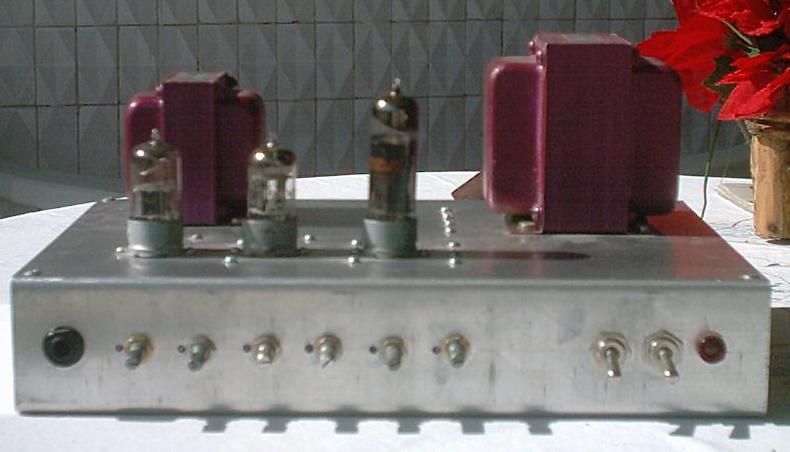

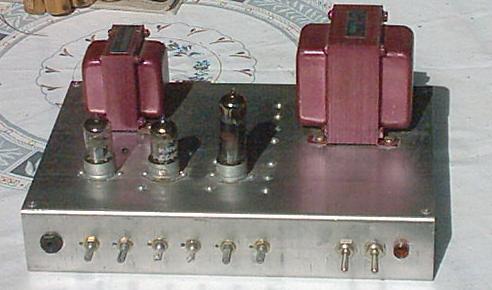

Front view. From left to right: input, gain 1, gain 2, bass, mid, treble, master gain, stand-by switch, power switch and power indicator.

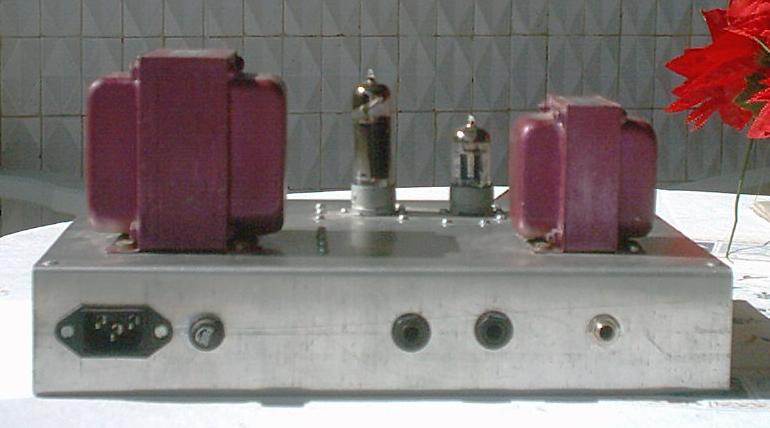

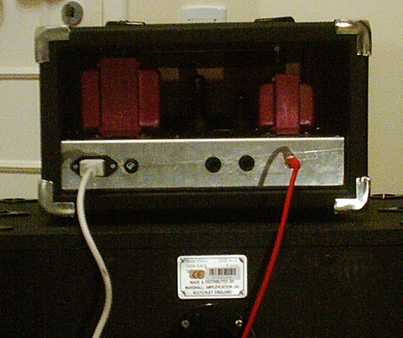

Back view. From left to right: power cord, fuse, pre-out, power-in and speaker output.

The power (TFS200) and speaker (TS8-A) transformers are built by Lynx Audio - Valve Amplification.
Special thanks to Mr. Guilherme Peregrini from Lynx Audio for his great help.

For more details, please contact Haroldo Gamal.
